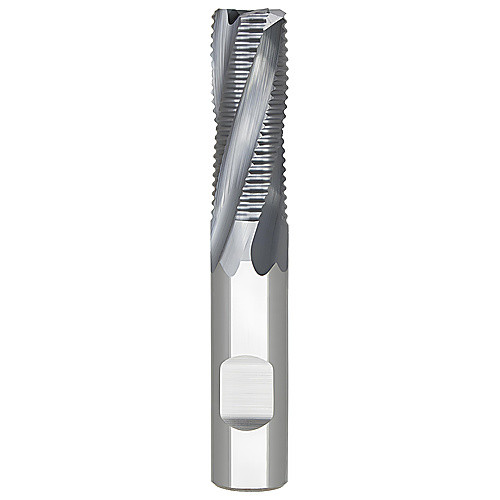

SR420M-100-D2-C050.0-Z4 ALTIN
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 73 mm OAL ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 10 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 10 mm | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 22 mm | Applicable Material | | Stainless Steel | |
| Overall Length (OAL) | 73 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Cutting Edge Material | Carbide | Flute Type | Fine |
| Coating | AlTiN | Decimal Equivalent | 0.3937″ |
| Flute Count (NOF) | 4 | Corner Radius (RE) / Chamfer Width (CHW) | 0.5 mm |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.15
