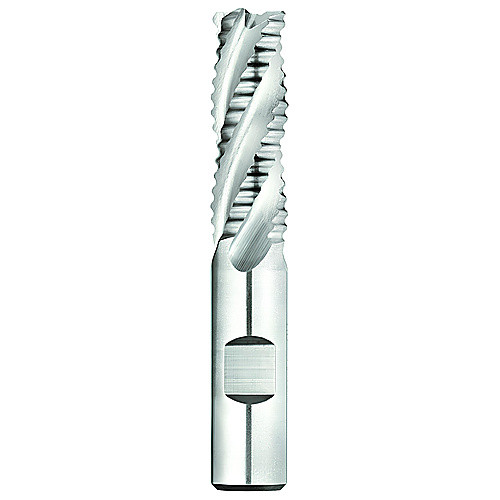

REC700-0.750-D1-C030.3-Z4 TC 3/4 X
SQ End Mill; 3/4″ Dia. × 3/4″ LOC × 3/4″ Shank Dia. × 3″ OAL ; 4 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 3/4″ | End Shape | Chamfer |
| Overall Length (OAL) | 3″ | Corner Chamfer Width (CHW) | 0.03″ |
| Cutting Edge Material | HSSCo | Flute Type | Coarse |
| Coating | TiCN | Decimal Equivalent | 0.75″ |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | USA |
