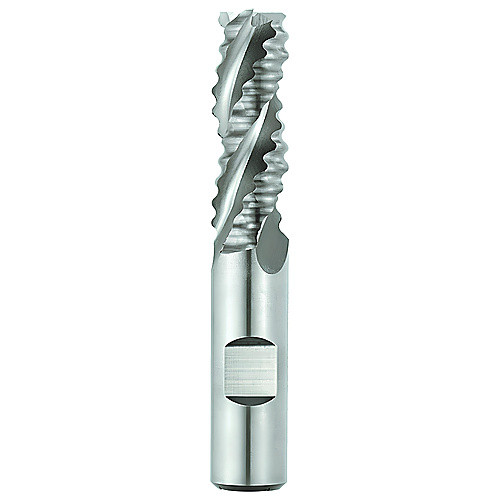

17013554 RHC752-0.750-D4-
SQ End Mill; 3/4″ Dia. × 1-5/8″ LOC × 3/4″ Shank Dia. × 3-7/8″ OAL ; 3 FL ; HSSCo ; TiCN
| Cutting Diameter (DC) | 3/4″ | Flute Helix Angle (FHA) | 36 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 1-5/8″ | End Shape | Chamfer |
| Overall Length (OAL) | 3-7/8″ | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | HSSCo | Corner Chamfer Width (CHW) | 0.04″ |
| Coating | TiCN | Flute Type | Coarse |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.75″ |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.379
