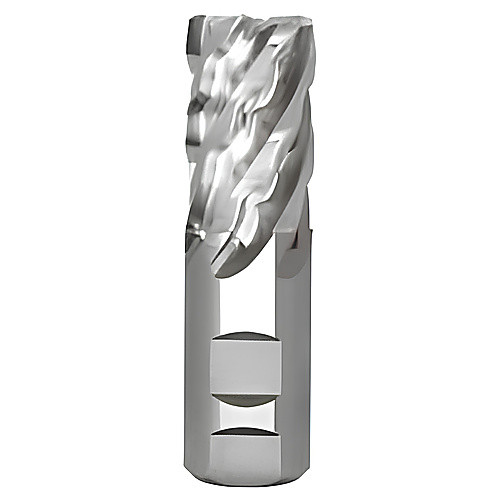

VFP635-1.500-P1-C040.3-Z6
SQ End Mill; 1-1/2″ Dia. × 2″ LOC × 1-1/4″ Shank Dia. × 4-1/2″ OAL ; 6 FL ; HSSCo
| Cutting Diameter (DC) | 1-1/2″ | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 2″ | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 4-1/2″ | Corner Chamfer Width (CHW) | 0.04″ |
| Cutting Edge Material | HSSCo | Decimal Equivalent | 1.5″ |
| Coating | Uncoated | Series/List # | VFP635 |
| Flute Count (NOF) | 6 | Corner Radius (RE) / Chamfer Width (CHW) | 0.04″ |
| Flute Helix Angle (FHA) | 35 Degrees |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
1.55
