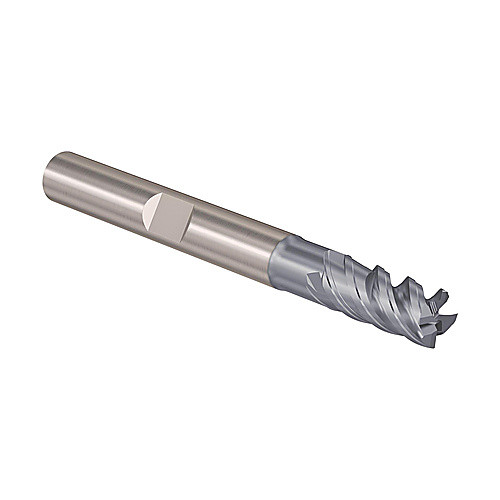

JS554050G2R020.3Z4-SIRA JABRO ENDMILL
SQ End Mill; 5 mm Dia. × 12 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 12 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | SIRON-A | Decimal Equivalent | 0.1969″ |
| Flute Count (NOF) | 4 | Series/List # | JS554 |
| Flute Helix Angle (FHA) | 48 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 0.2 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.051
