EFSI-E44 500-1.0C500CF3.0 IC900

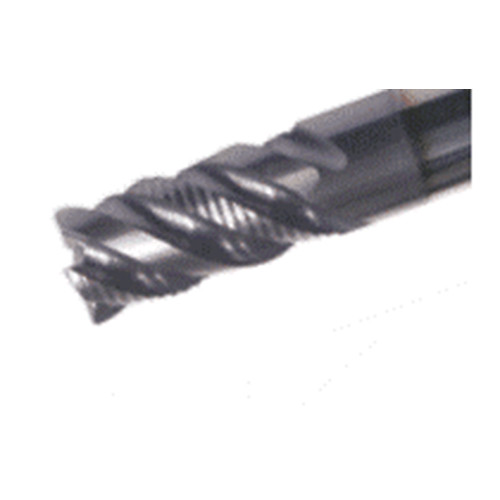

SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; 1″ LBS ; Carbide ; AlTiN

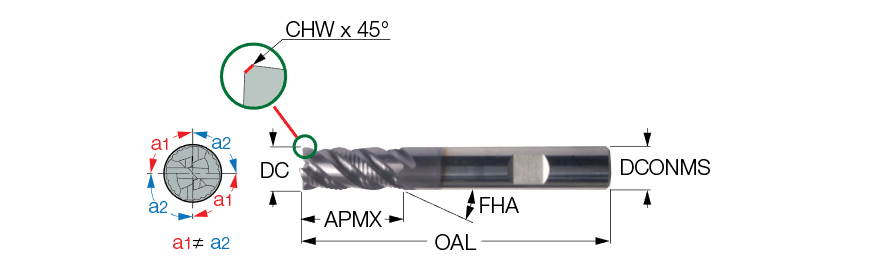

| Cutting Diameter (DC) | 1/2″ | Corner Chamfer Width (CHW) | 0.02″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IC900 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | A combination of roughing and finishing solid carbide endmil l in a single tool. 4 variable pitch flutes, 38° Helix, medi um length. Provides finish surface at rough machining parame ters. Reduces vibrations at high load applications. | Country of Origin | USA |
| Remarks | Minimum width of cut for semi-finishing operation >= 0.05 x DC |
Shipping Info
Package Weight
0.269
