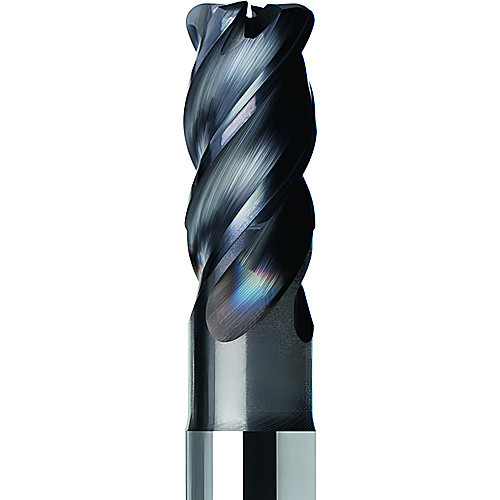

JHP770080E2R050.9Z4A.SIRA JABRO END MILL
SQ End Mill; 8 mm Dia. × 16 mm LOC × 8 mm Shank Dia. × 65 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Flute Helix Angle (FHA) | 42 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Shank Type | Safelock |
| Depth of Cut Maximum (APMX) | 16 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 65 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.315″ |
| Coating | SIRON-A | Series/List # | JHP770 |
| Flute Count (NOF) | 4 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.104
