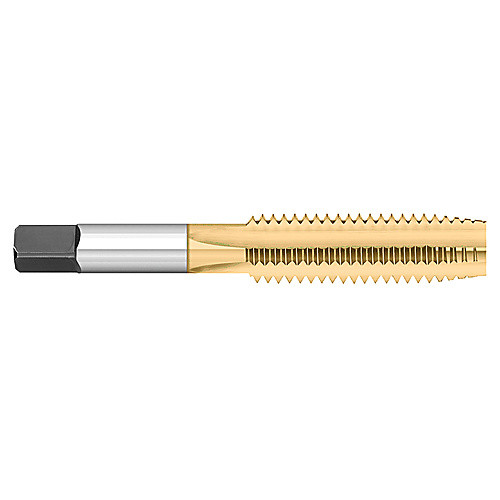

729 1/2-20 H3 4F PLUG TIN
Straight Flute Tap; 1/2″ - 20 ; 3-3/8″ OAL ; 4 FL ; HSS ; TiN ; H3
| Thread Diameter Size (TDZ) | 1/2″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 20 | Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | UN | Special Feature | General Purpose |
| Overall Length (OAL) | 3-3/8″ | Standard | ANSI |
| Thread Cutting Part Length (THL) | 1-21/32″ | Chamfer | PLUG |
| Usable Length (LU) | 1-21/32″ | Coating | TiN |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Thread Size | 1/2″ - 20 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.101
