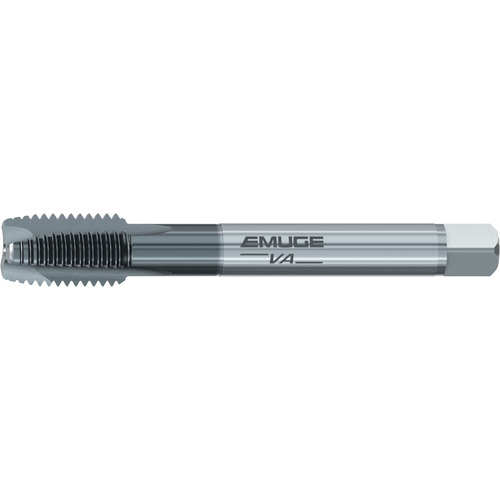

Straight Flute Tap; 1-1/2″ -8 × 7.874″ OAL ; 4 FL ; HSSE ; TiCN ; UN ; 2B 3B H3 ; Series U209300
Straight Flute Tap; 1-1/2″ - 8 ; 7.874″ OAL ; 4 FL ; HSSE ; TiCN ; 2B ; Series U209300
| Thread Diameter Size (TDZ) | 1-1/2″ | Standard | DIN | ANSI |
| Threads per Inch (TPI) | 8 | Tool Type | Rekord B-VA |
| Thread Standard | UN | Chamfer | 4P-5P |
| Overall Length (OAL) | 7.874″ | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 1.233″ | Flute Type | Straight |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Steel | Stainless Steel | | Measurement Type | Inch |
| Cutting Edge Material | HSSE | Series/List # | CU209300 |
| Thread Tolerance Class (TCTR) | 2B | Thread Size | 1-1/2″ - 8 |
Product Features
| Remarks | • Rekord B-VA design is typically for through hole applications in stainless steel and steel alloys • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
