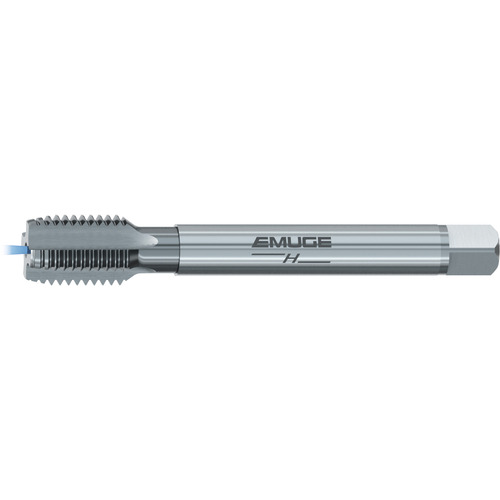

Straight Flute Tap; M14 x2 mm × 110 mm OAL ; Carbide ; Bright ; Metric ; 6HX ; Series 1950901
Straight Flute Tap; M14 × 2 mm ; 110 mm OAL ; Carbide ; Uncoated ; 6HX ; Series 1950901
| Thread Diameter Size (TDZ) | M14 | Standard | DIN |
| Thread Pitch (TP) | 2 mm | Tool Type | Rekord A-H |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Flute Type | Straight |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | Hard Materials | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | Carbide | Series/List # | 1950901 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M14 × 2 |
Product Features
| Country of Origin | Germany |
Shipping Info
Package Weight
.990
