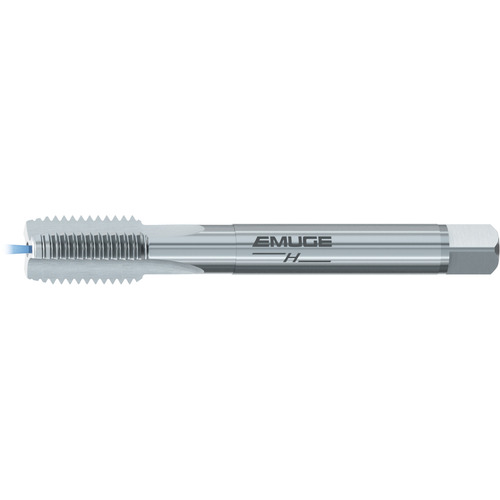

Straight Flute Tap; M16 x2 mm × 110 mm OAL ; HSSE ; Nitride ; Metric ; 6HX ; Series 1950501
Straight Flute Tap; M16 × 2 mm ; 110 mm OAL ; HSSE ; 6HX ; Series 1950501
| Thread Diameter Size (TDZ) | M16 | Standard | DIN |
| Thread Pitch (TP) | 2 mm | Tool Type | Rekord A-H |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 110 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | Coolant Thru |
| Applicable Material | | Cast Iron | Hard Materials | | Series/List # | C1950501 |
| Cutting Edge Material | HSSE | Thread Size | M16 × 2 |
| Thread Tolerance Class (TCTR) | 6HX |
Product Features
| Remarks | • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels). • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
