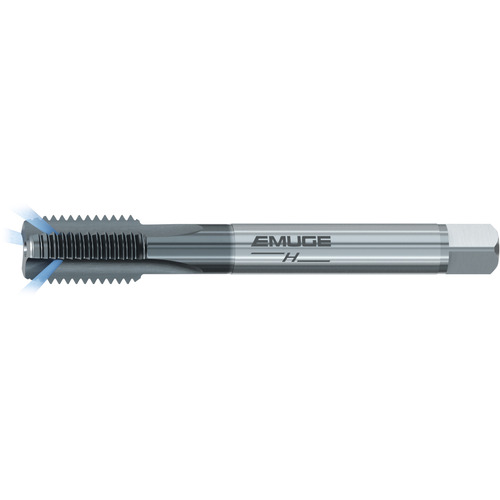

Straight Flute Tap; M12 x1.5 mm × 100 mm OAL ; HSSE ; TiCN ; Metric ; 6HX ; Series 1069101
Straight Flute Tap; M12 × 1.5 mm ; 100 mm OAL ; HSSE ; TiCN ; 6HX ; Series 1069101
| Thread Diameter Size (TDZ) | M12 | Standard | DIN |
| Thread Pitch (TP) | 1.5 mm | Tool Type | Rekord A-H |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 100 mm | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Flute Type | Straight |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | Hard Materials | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | HSSE | Series/List # | C1069101 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M12 × 1.5 |
Product Features
| Remarks | • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels). • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
