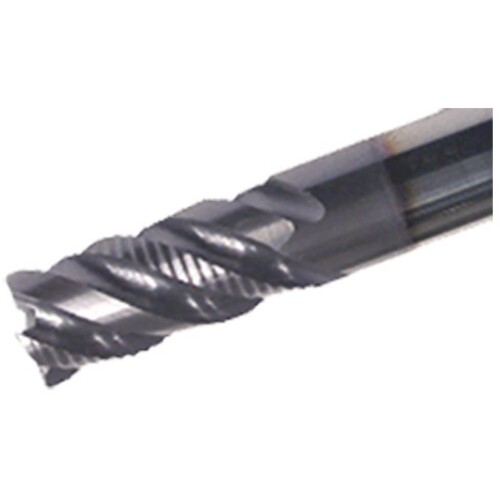

EFSI-B44 500-1.0C500 IC300
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 4 FL ; Carbide ; TiCN
| Cutting Diameter (DC) | 1/2″ | Corner Chamfer Width (CHW) | 0.016″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IC300 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide center cutting endmills 90 Degrees |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | TiCN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | Finishing | Roughing | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting |
Product Features
| Family Description | FINISHRED, A combination of roughing and finishing solid carbide endmills in a single tool. 4 flute, medium length, 45° helix. | Country of Origin | Israel |
| Remarks | Minimum width of cut for semi-finishing operation >= 0.05 x DC IC300 should be mainly used for machining exotic materials |
Shipping Info
Package Weight
0.281
