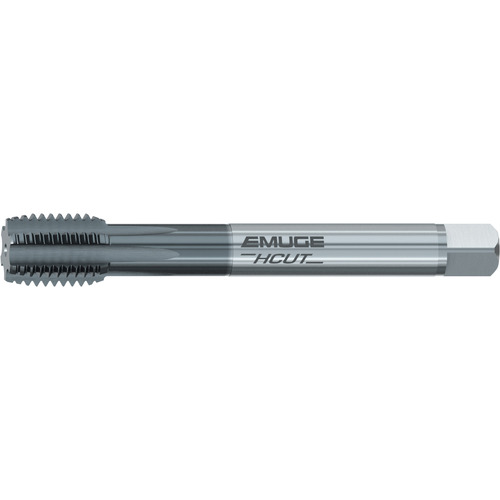

Straight Flute Tap; M16 x2 mm × 110 mm OAL ; HSSE-PM ; TiCN ; Metric ; D1 ; Series 010J901
Straight Flute Tap; M16 × 2 mm ; 110 mm OAL ; HSSE-PM ; TiCN ; 6HX ; Series 010J901
| Thread Diameter Size (TDZ) | M16 | Tool Type | Rekord A-HCUT |
| Thread Pitch (TP) | 2 mm | Chamfer | 2P-3P |
| Thread Standard | Metric | Coating | TiCN |
| Overall Length (OAL) | 110 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Application | Blind Hole | Coolant Supply Property (CSP) | External |
| Applicable Material | | Hard Materials | | Measurement Type | Metric |
| Cutting Edge Material | HSSE-PM | Series/List # | C010J901 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M16 × 2 |
| Standard | DIN |
Product Features
| Remarks | • Rekord A-HCUT straight flute tap for Whitworth pipe thread. For applications in hardened steel materials. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.990
