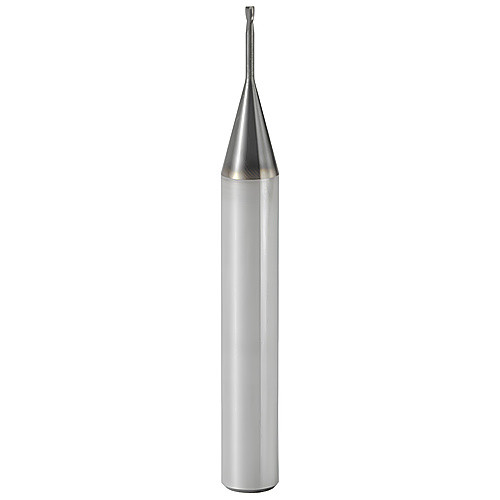

920TL020-MEGA-T JABRO MINI END MILL
SQ End Mill; 2 mm Dia. × 2.2 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; 19.7 mm LBS ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 2 mm | Flute Helix Angle (FHA) | 20 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 2.2 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 50 mm | Usable Length (LU) | 19.7 mm |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | MEGA-T | Decimal Equivalent | 0.0787″ |
| Flute Count (NOF) | 2 | Corner Radius (RE) / Chamfer Width (CHW) | 0.15 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.007
