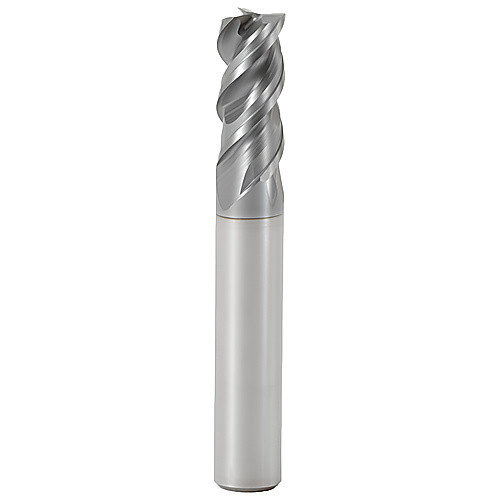

5530500Z3.0-SIRON-A JABRO SOLID 2 END MILL
SQ End Mill; 12.7 mm Dia. × 25.4 mm LOC × 12.7 mm Shank Dia. × 88.9 mm OAL ; 0.0059″ RE ; 3 FL ; Carbide ; SIRON-A ; Series JS553
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12.7 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12.7 mm | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 25.4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 88.9 mm | Corner Chamfer Width (CHW) | 0.15 mm |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.5″ |
| Coating | SIRON-A | Series/List # | JS553 |
| Flute Count (NOF) | 3 | Corner Radius (RE) / Chamfer Width (CHW) | 0.0059″ |
| Flute Helix Angle (FHA) | 48 Degrees |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.331
