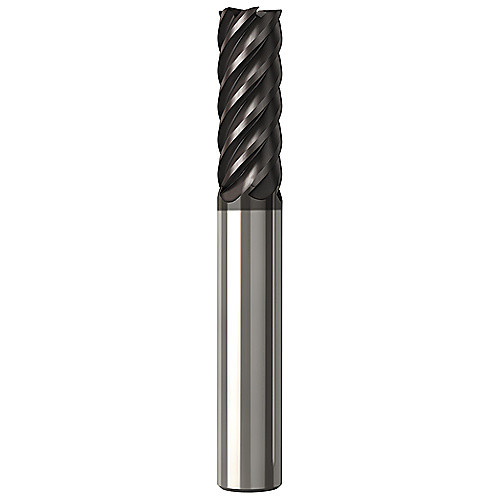

JS520050F2C.3Z5-NXT JABRO ENDMILL
SQ End Mill; 5 mm Dia. × 12 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 5 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 5 mm | Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 12 mm | End Shape | Chamfer |
| Overall Length (OAL) | 57 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.05 mm |
| Coating | NXT | Decimal Equivalent | 0.1969″ |
| Flute Count (NOF) | 5 | Series/List # | JS520 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.053
