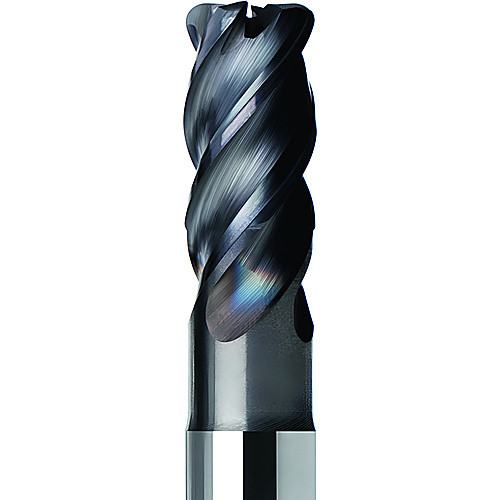

JHP770200E2R250.9Z4A-SIRA JABRO END MILL
SQ End Mill; 20 mm Dia. × 40 mm LOC × 20 mm Shank Dia. × 115 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 20 mm | Shank Type | Safelock |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 40 mm | Usable Length (LU) | 55 mm |
| Overall Length (OAL) | 115 mm | Corner Radius (RE) | 2.5 mm |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | SIRON-A | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.7874″ |
| Flute Helix Angle (FHA) | 42 Degrees | Series/List # | JHP770 |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
1.102
