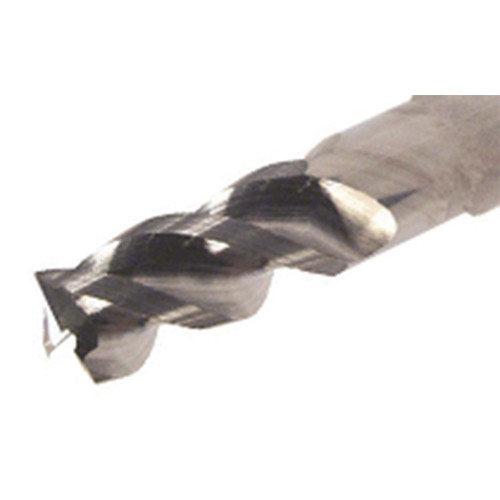

ECAI-H3R 1.0-1.5/5.0C12CF IC08

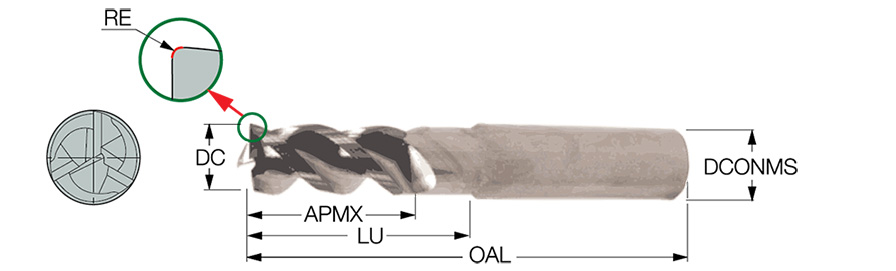

SQ End Mill; 1″ Dia. × 1-1/2″ LOC × 1″ Shank Dia. × 7.2″ OAL ; 0.12″ RE ; 3 FL ; 5″ LBS ; Carbide ; Uncoated
| Cutting Diameter (DC) | 1″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1″ | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Neck Diameter (DN) | 0.295″ |
| Overall Length (OAL) | 7.2″ | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.008 ″/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Decimal Equivalent | 1″ |
| Usable Length (LU) | 5″ | Measurement Type | Inch |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Connection Code Machine Side (CCMS) | Cylindrical |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.12″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | CHATTERFREE, 3 flute solid carbide endmills with 39-41° variable helix, 3 and 5xD neck relief for machining aluminum. Featuring excellent chatter dampening ability. Used for both roughing and finishing. | Country of Origin | Israel |
Shipping Info
Package Weight
2.407
