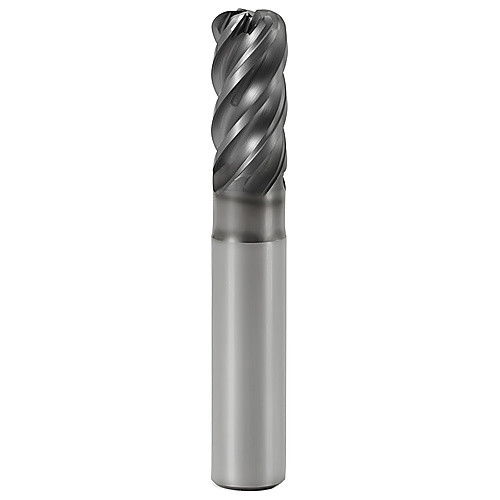

JHP770160E2R400.3Z5A-SIRA JABRO HPM
SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 100 mm OAL ; 5 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 16 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Usable Length (LU) | 45 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Overall Length (OAL) | 100 mm | Corner Radius (RE) | 4 mm |
| Cutting Edge Material | Carbide | Tool Type | High Performance |
| Coating | SIRON-A | Coolant Supply Property (CSP) | Coolant Thru |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.6299″ |
| Flute Helix Angle (FHA) | 42 Degrees | Series/List # | JHP770 |
| Shank Type | Safelock | Corner Radius (RE) / Chamfer Width (CHW) | 4 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.597
