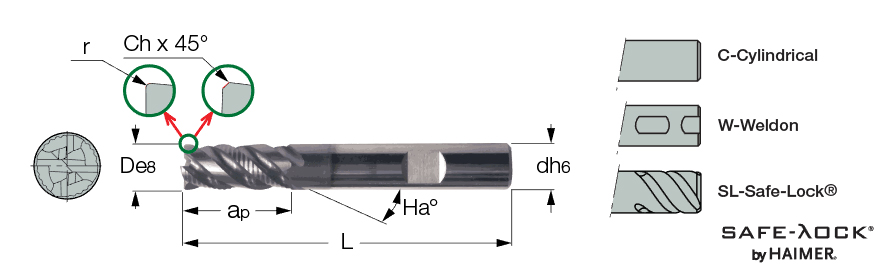

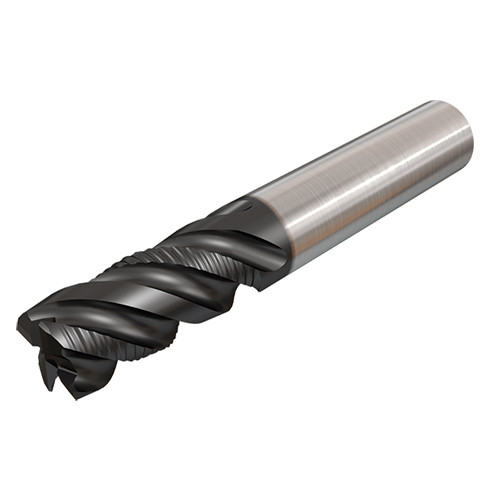

EFSI-B44 625-1.25C625 IC900
SQ End Mill; 5/8″ Dia. × 1-1/4″ LOC × 5/8″ Shank Dia. × 3-1/2″ OAL ; 4 FL ; 1-1/4″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 5/8″ | Corner Chamfer Width (CHW) | 0.024″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | IC900 |
| Overall Length (OAL) | 3-1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.004 ″/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.625″ |
| End Shape | Chamfer | Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | FINISHRED, A combination of roughing and finishing solid carbide endmills in a single tool. 4 flute, medium length, 45° helix. | Country of Origin | S.Korea |
| Remarks | Minimum width of cut for semi-finishing operation >= 0.05 x DC |
Shipping Info
Package Weight
0.504
