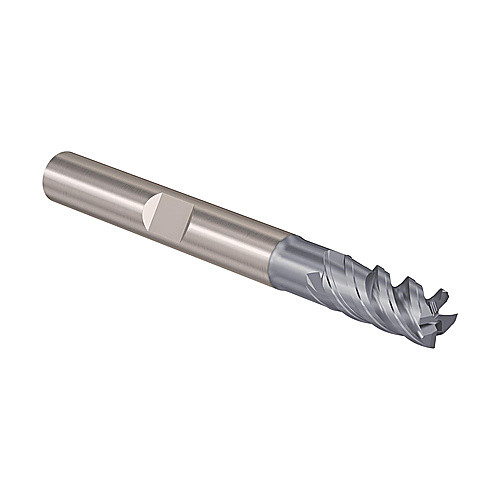

JS554120E2R250.3Z4-SIRA JABRO ENDMILL
SQ End Mill; 12 mm Dia. × 26 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Shank Type | Weldon |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 26 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | |
| Overall Length (OAL) | 83 mm | Corner Radius (RE) | 2.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Corner Radius |
| Coating | SIRON-A | Decimal Equivalent | 0.4724″ |
| Flute Count (NOF) | 4 | Series/List # | JS554 |
| Flute Helix Angle (FHA) | 48 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | 2.5 mm |
Product Features
| Country of Origin | Netherlands |
Shipping Info
Package Weight
0.276
