TT93069 M16X2 D7 4FL BOTT

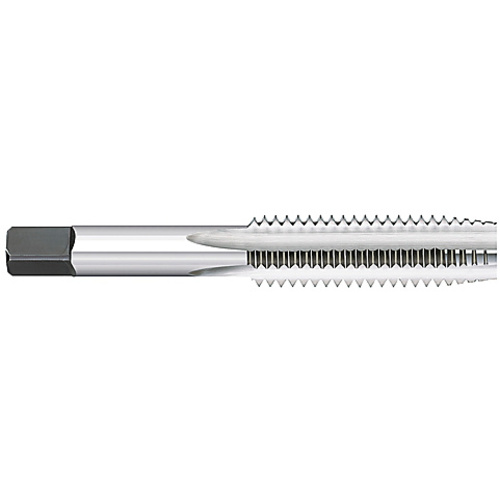

Straight Flute Tap; M16 × 2 mm ; 3-13/16″ OAL ; 4 FL ; HSS ; Uncoated ; D7
| Thread Diameter Size (TDZ) | M16 | Cutting Edge Material | HSS |
| Thread Pitch (TP) | 2 mm | Thread Tolerance Class (TCTR) | D7 |
| Thread Standard | Metric | Special Feature | General Purpose |
| Overall Length (OAL) | 3-13/16″ | Standard | ANSI |
| Thread Cutting Part Length (THL) | 1-13/16″ | Chamfer | Bottoming |
| Usable Length (LU) | 1-13/16″ | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 0.48″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Thread Size | M16 × 2 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.450
