1105101708 M18X2.5 D7 2.5

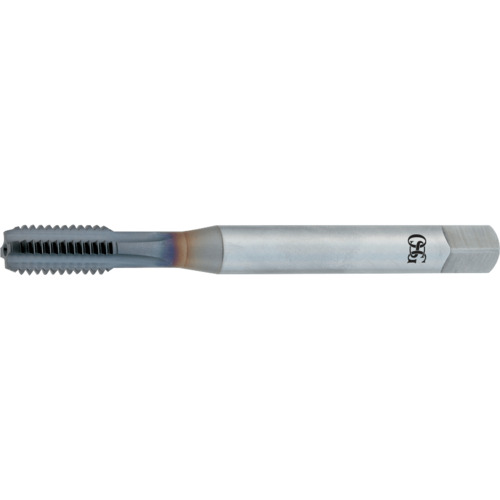

Straight Flute Tap; M18 × 2.5 mm ; 102 mm OAL ; D7
| Thread Diameter Size (TDZ) | M18 | Applicable Material | | Steel | Hard Materials | |
| Thread Pitch (TP) | 2.5 mm | Thread Tolerance Class (TCTR) | D7 |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 102 mm | Flute Type | Straight |
| Usable Length (LU) | 55 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 13.76 mm | Thread Size | M18 × 2.5 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
