1105101308 M14X2.0 D7 2.5

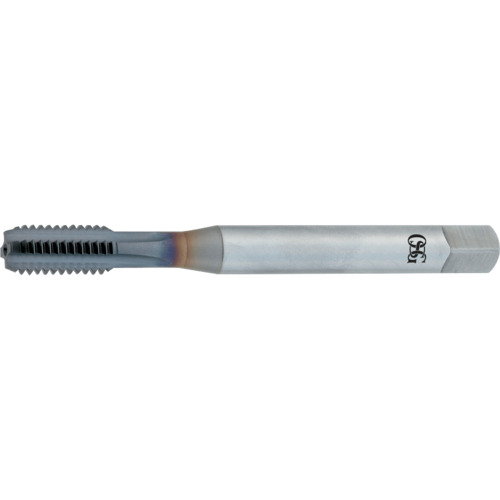

Straight Flute Tap; M14 × 2 mm ; 91 mm OAL ; D7
| Thread Diameter Size (TDZ) | M14 | Applicable Material | | Steel | Hard Materials | |
| Thread Pitch (TP) | 2 mm | Thread Tolerance Class (TCTR) | D7 |
| Thread Standard | Metric | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 91 mm | Flute Type | Straight |
| Usable Length (LU) | 50 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10.89 mm | Thread Size | M14 × 2 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Weight
.999
