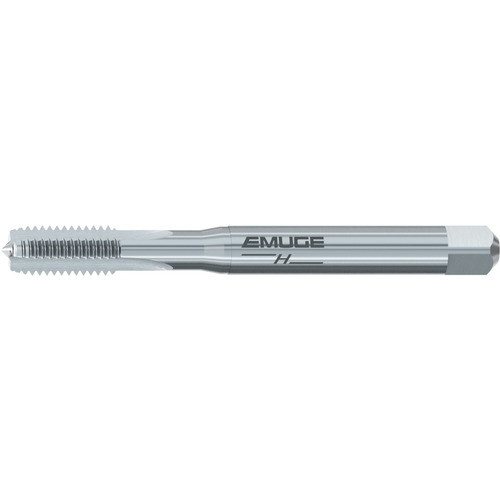

Straight Flute Tap; M7 x1 mm × 90 mm OAL ; HSSE ; Nitride ; Metric ; 6HX
| Thread Diameter Size (TDZ) | M7 | Standard | DIN |
| Thread Pitch (TP) | 1 mm | Tool Type | Rekord A-H |
| Thread Standard | Metric | Chamfer | 2P-3P |
| Overall Length (OAL) | 90 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Cast Iron | Hard Materials | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE | Series/List # | B0100501 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M7 × 1 |
Product Features
| Remarks | • Rekord A-H is a straight flute design best suited for short chipping, high tensile strength materials (cast iron & hardened steels) in through & blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.999
