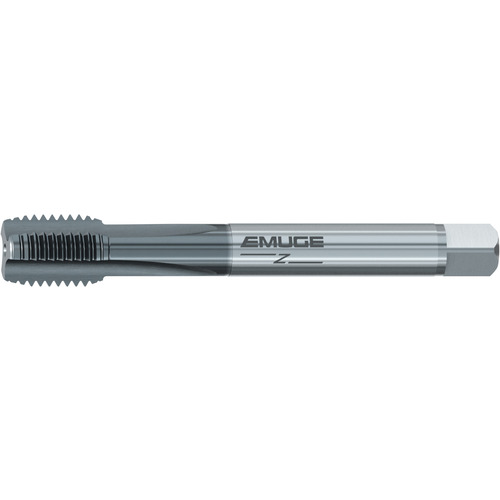

Straight Flute Tap; M14 x2 mm × 100 mm OAL ; HSSE-PM ; TiCN ; Metric ; 6HX
| Thread Diameter Size (TDZ) | M14 | Standard | DIN |
| Thread Pitch (TP) | 2 mm | Tool Type | Rekord A-Z |
| Thread Standard | Metric | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 100 mm | Coating | TiCN |
| Connection Diameter Machine Side (DCONMS) | 11 mm | Flute Type | Straight |
| Application | Blind Hole | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Stainless Steel | | Coolant Supply Property (CSP) | External |
| Cutting Edge Material | HSSE-PM | Series/List # | C0119401 |
| Thread Tolerance Class (TCTR) | 6HX | Thread Size | M14 × 2 |
Product Features
| Remarks | • Rekord A-Z is a straight flute for short chipping materials in through or blind hole applications. • Longer tool life and more consistent thread quality. | Country of Origin | Germany |
Shipping Info
Package Weight
.999
