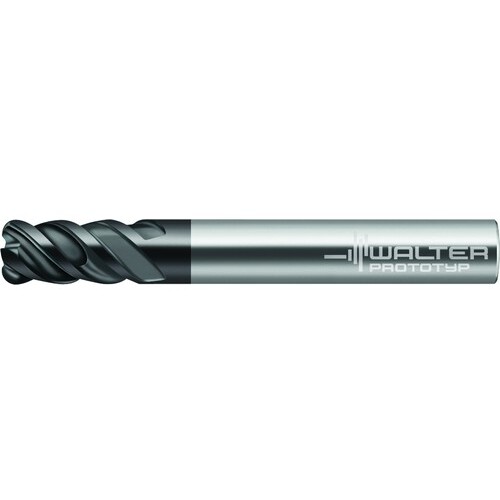

6mm Dia. × 13mm LOC 4 Flute Carbide TAX .05mm CR N
SQ End Mill; 6 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.5 mm RE ; 4 FL ; Carbide ; AlTiN
| Cutting Diameter (DC) | 6 mm | Flute Helix Angle (FHA) | CW|50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Shank Type | Round |
| Depth of Cut Maximum (APMX) | 13 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 57 mm | Corner Radius (RE) | 0.5 mm |
| Cutting Edge Material | Carbide | Tool Type | Non-Center Cutting |
| Coating | AlTiN | Decimal Equivalent | 0.2362″ |
| Flute Count (NOF) | 4 |
Product Features
| Family Description | H3070318–6–0.5 | Country of Origin | Germany |
Shipping Info
Package Weight
0.062
