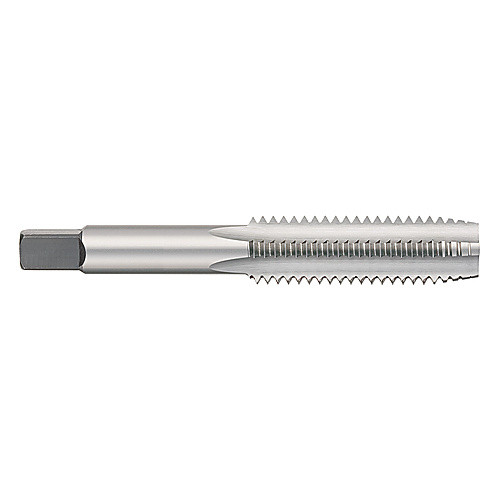

766 7/16-14 H11 4F HAND P
Straight Flute Tap; 7/16″ - 14 ; 3-5/32″ OAL ; 4 FL ; HSS ; Uncoated ; H11
| Thread Diameter Size (TDZ) | 7/16″ | Cutting Edge Material | HSS |
| Threads per Inch (TPI) | 14 | Thread Tolerance Class (TCTR) | H11 |
| Thread Standard | UN | Special Feature | General Purpose |
| Overall Length (OAL) | 3-5/32″ | Standard | ANSI |
| Thread Cutting Part Length (THL) | 1-7/16″ | Chamfer | PLUG |
| Usable Length (LU) | 1-7/16″ | Coating | Uncoated |
| Connection Diameter Machine Side (DCONMS) | 0.323″ | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Thread Size | 7/16″ - 14 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
.072
