TPG UNC-5/8-11-M HETI
Straight Flute Tap; 5/8″ × 2.273 mm - 11 Threads/" ; 110 mm OAL ; 3 FL ; HSS ; TiN ; 6HX

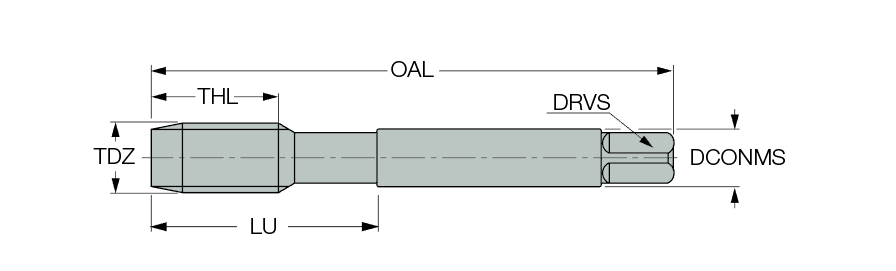

| Thread Diameter Size (TDZ) | 5/8″ | Tool Type | Machine Through Hole Taps |
| Thread Pitch (TP) | 2.273 mm | Coating | TiN |
| Threads per Inch (TPI) | 11 Threads/" | Drive Size (DRVS) | 9 mm |
| Thread Standard | THFT | | Flute Length | 78 mm |
| Overall Length (OAL) | 110 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 27 mm | Style | DIN 376 |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|45 Degrees | Measurement Type | Metric |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | | Grade | HETI |
| Cutting Edge Material | HSS | Thread Size | 5/8 - 11 |
| Thread Tolerance Class (TCTR) | 6HX | Body Material | HSS |
| Standard | DIN 376 | Thread Form Type (THFT) | UN60 |
Product Features
| Family Description | HSS gun point machine taps - unified coarse threads for a wide range of materials. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.224
