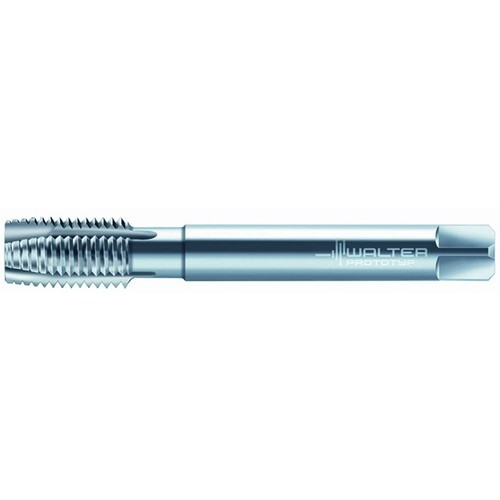

M12x1 6G 4 Flute HSS Bright Straight Flute Tap
Straight Flute Tap; M12 × 1 mm ; 101.92 mm OAL ; 4 FL ; HSS ; Uncoated ; 6G
Additional Tariff Surcharge of 8 %
| Thread Diameter Size (TDZ) | M12 | Thread Tolerance Class (TCTR) | 6G |
| Thread Pitch (TP) | 1 mm | Standard | DIN 374 |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 101.92 mm | Flute Length | 37 mm |
| Thread Cutting Part Length (THL) | 21 mm | Flute Type | Straight |
| Connection Diameter Machine Side (DCONMS) | 9 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | CW|15 Degrees | Measurement Type | Metric |
| Cutting Edge Material | HSS | Thread Size | M12 × 1 |
Product Features
| Family Description | P21380-M12X1 | Country of Origin | Germany |
Shipping Info
Package Weight
0.127
