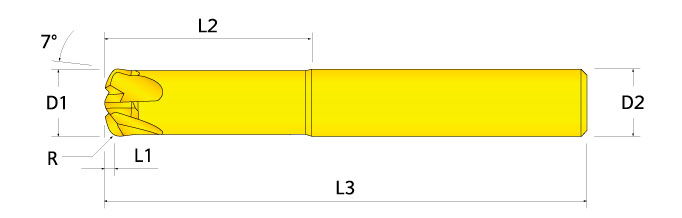

45A04003T7RA070 IN2003
SQ End Mill; 0.158″ Dia. × 0.008″ LOC × 0.236″ Shank Dia. × 2.244″ OAL ; 2 FL ; TiAlN
| Cutting Diameter (DC) | 0.158″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Application | Shouldering |
| Depth of Cut Maximum (APMX) | 0.008″ | Corner Radius (RE) | 0.02″ |
| Overall Length (OAL) | 2.244″ | Grade | IN2003 |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 0.007″ |
| Coating | TiAlN | Tool Type | Center Cut |
| Flute Count (NOF) | 2 | Body Material | Steel |
| Flute Helix Angle (FHA) | 30 Degrees | Decimal Equivalent | 0.158″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 0.551″ | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
Product Features
| Country of Origin | Israel |
