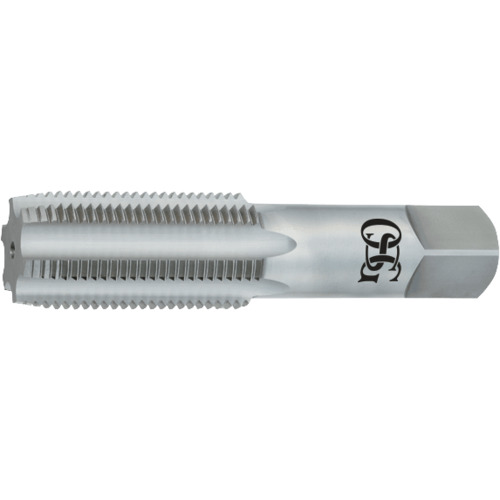

2-1/4-8 Dia. - H6-6FL - HSS - Bright - Bottoming - Straight Flute Tap
Straight Flute Tap; 2-1/4″ - 8 ; 8-1/4″ OAL ; 6 FL ; HSS ; Uncoated ; H6 ; Series 180
| Thread Diameter Size (TDZ) | 2-1/4″ | Thread Tolerance Class (TCTR) | H6 |
| Threads per Inch (TPI) | 8 | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 8-1/4″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 3-9/16″ | Flute Type | Straight |
| Usable Length (LU) | 4″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 1.894″ | Shank Type | Round |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 180 |
| Cutting Edge Material | HSS | Thread Size | 2-1/4″ - 8 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
8.60000
Package Width
2.85000
Package Height
2.75000
Package Weight
5.8700
