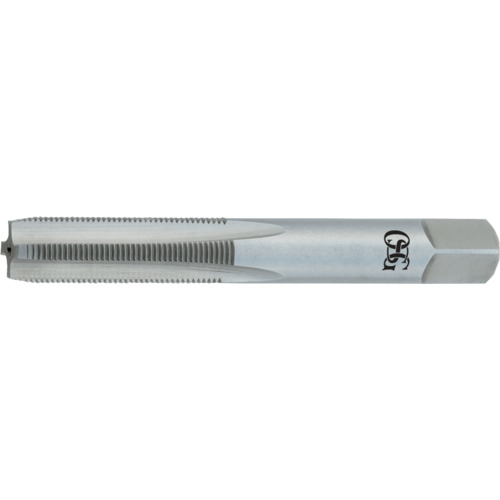

12-32 4Fl H3 HSS Straight Flute Plug Tap-Bright
Straight Flute Tap; #12 - 32 ; 2-3/8″ OAL ; 4 FL ; HSS ; Uncoated ; H3 ; Series 101N
| Thread Diameter Size (TDZ) | #12 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 32 | Chamfer | 4P-4.5P |
| Thread Standard | UNEF | Coating | Uncoated |
| Overall Length (OAL) | 2-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 15/16″ | End Shape | Chamfer |
| Usable Length (LU) | 1.11″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.22″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS | Series/List # | 101N |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | #12 - 32 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.35000
Package Height
.35000
Package Weight
0.01
