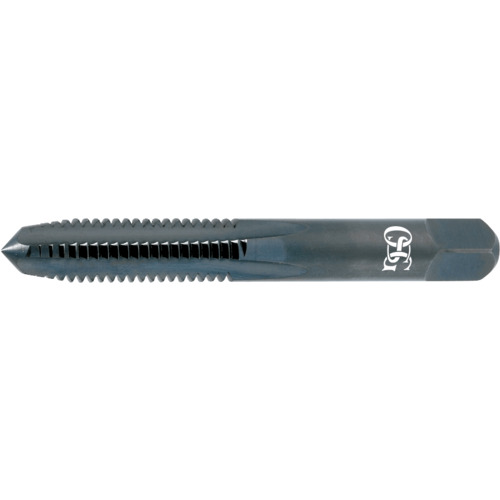

5/16-24 H3 4FL HSS Straight Flute Bottoming Tap-TiCN
Straight Flute Tap; 5/16″ - 24 ; 2-23/32″ OAL ; 4 FL ; HSS ; TiCN ; H3 ; Series 101
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | H3 |
| Threads per Inch (TPI) | 24 | Chamfer | 1.5P-2P |
| Thread Standard | NF | Coating | TiCN |
| Overall Length (OAL) | 2-23/32″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/8″ | End Shape | Chamfer |
| Usable Length (LU) | 1.322″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 0.317″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 101 |
| Cutting Edge Material | HSS | Thread Size | 5/16″ - 24 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.60000
Package Height
.45000
Package Weight
0.05
