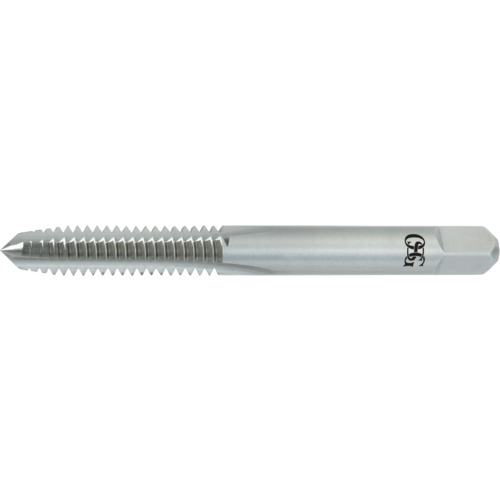

5-44 2Fl H2 HSS Straight Flute Plug Tap-Bright
Straight Flute Tap; #5 - 44 ; 1-15/16″ OAL ; 2 FL ; HSS ; Uncoated ; H2 ; Series 104
| Thread Diameter Size (TDZ) | #5 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 44 | Chamfer | 4P-4.5P |
| Thread Standard | NF | Coating | Uncoated |
| Overall Length (OAL) | 1-15/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 5/8″ | End Shape | Chamfer |
| Usable Length (LU) | 0.795″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Shank Type | Round |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSS | Series/List # | 104 |
| Thread Tolerance Class (TCTR) | H2 | Thread Size | #5 - 44 |
Product Features
| Country of Origin | Brazil |
Shipping Info
Package Length
2.95000
Package Width
.40000
Package Height
.35000
Package Weight
.0100
