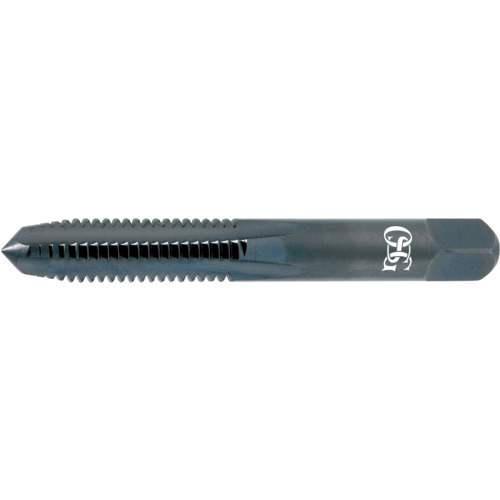

1/4-20 4Fl H5 HSS Straight Flute Bottoming Tap-TiCN
Straight Flute Tap; 1/4″ - 20 ; 2-1/2″ OAL ; 4 FL ; HSS ; TiCN ; H5 ; Series 101
| Thread Diameter Size (TDZ) | 1/4″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 20 | Coating | TiCN |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2-1/2″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1″ | Style | Bottoming |
| Usable Length (LU) | 1.181″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 101 |
| Cutting Edge Material | HSS | Thread Size | 1/4″ - 20 |
| Thread Tolerance Class (TCTR) | H5 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
.0300
