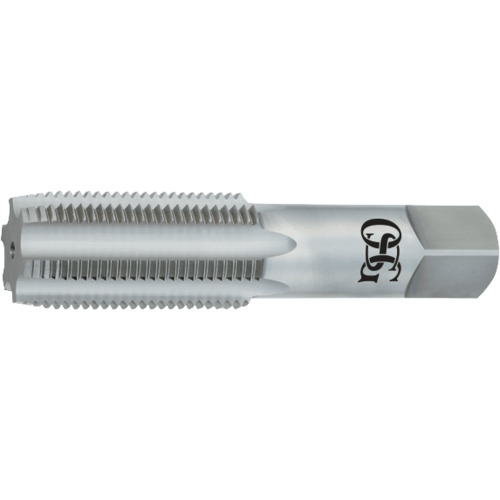

1-3/8-8 6Fl H5 HSS Straight Flute Bottoming Tap-Bright
Straight Flute Tap; 1-3/8″ - 8 ; 6-1/16″ OAL ; 6 FL ; HSS ; Uncoated ; H5 ; Series 180
| Thread Diameter Size (TDZ) | 1-3/8″ | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 8 | Coating | Uncoated |
| Overall Length (OAL) | 6-1/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3″ | End Shape | Chamfer |
| Usable Length (LU) | 3.161″ | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 1.107″ | Shank Type | Round |
| Flute Count (NOF) | 6 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 180 |
| Thread Tolerance Class (TCTR) | H5 | Thread Size | 1-3/8″ - 8 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
6.25000
Package Width
2.00000
Package Height
1.95000
Package Weight
1.545
