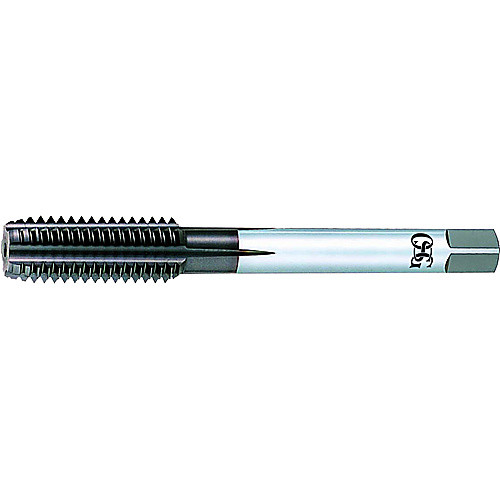

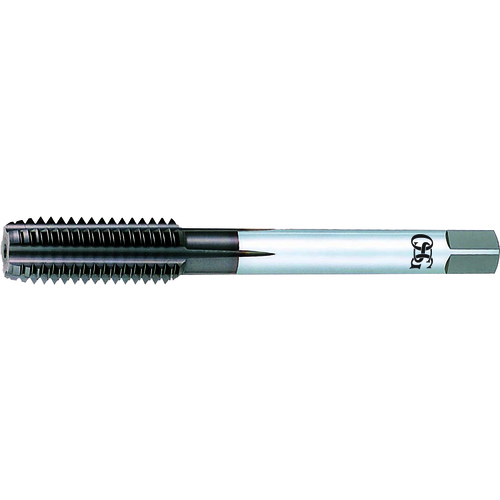

1/4-28 Dia.-2B-5 FL - Carbide - TiCN - Modified Bottoming - Straight Flute Tap
Straight Flute Tap; 1/4″ - 28 ; 80 mm OAL ; 5 FL ; Carbide ; TiCN ; 2B ; Series 311
| Thread Diameter Size (TDZ) | 1/4″ | Thread Tolerance Class (TCTR) | 2B |
| Threads per Inch (TPI) | 28 | Chamfer | 2.5P-3P |
| Thread Standard | NF | Coating | TiCN |
| Overall Length (OAL) | 80 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1″ | Style | Modified Bottoming |
| Usable Length (LU) | 1.189″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.255″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 311 |
| Applicable Material | | Hard Materials | | Thread Size | 1/4″ - 28 |
| Cutting Edge Material | Carbide |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.30000
Package Width
.55000
Package Height
.45000
Package Weight
0.07
