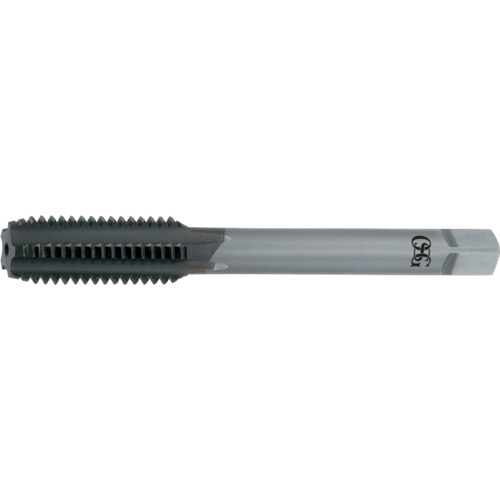

1/2-13 5Fl 2B Carbide Straight Flute Tap-DIA Coated
Straight Flute Tap; 1/2″ - 13 ; 110 mm OAL ; 5 FL ; Carbide ; 2B ; Series 329
| Thread Diameter Size (TDZ) | 1/2″ | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 13 | Thread Tolerance Class (TCTR) | 2B |
| Thread Standard | UNC | Chamfer | 2.5P-3P |
| Overall Length (OAL) | 110 mm | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-21/32″ | Style | Straight Flute |
| Usable Length (LU) | 1-21/32″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.367″ | Measurement Type | Inch |
| Flute Count (NOF) | 5 | Series/List # | 329 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Thread Size | 1/2″ - 13 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
4.50000
Package Width
.75000
Package Height
.65000
Package Weight
.2550
