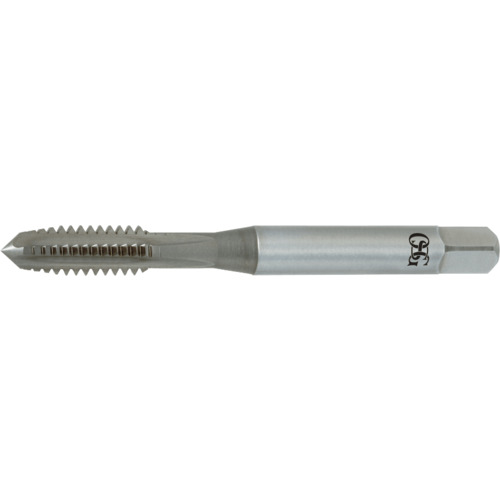

6-32 4Fl HSS-CO Straight Flute Bottoming Tap-Nitride
Straight Flute Tap; #6 - 32 ; 2″ OAL ; 4 FL ; HSSCo ; Nitride ; 2B ; Series 114
| Thread Diameter Size (TDZ) | #6 | Chamfer | 1.5P-2P |
| Threads per Inch (TPI) | 32 | Coating | Nitride |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 11/16″ | Style | Bottoming |
| Usable Length (LU) | 0.685″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Wire Gauge |
| Cutting Edge Material | HSSCo | Series/List # | 114 |
| Thread Tolerance Class (TCTR) | 2B | Thread Size | #6 - 32 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.01
