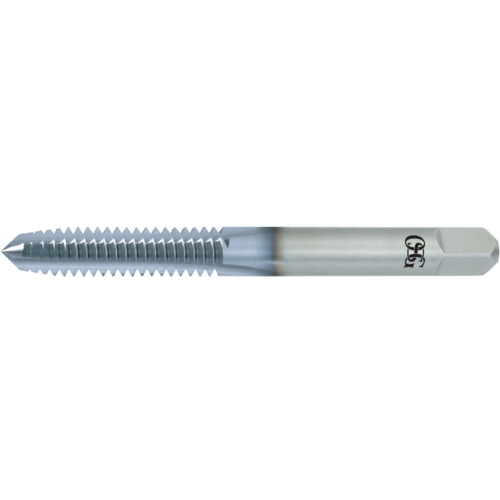

M36 4.0 D9 4FL TAPER ST FL TAP
Straight Flute Tap; M36 × 4 mm ; 6-1/16″ OAL ; 4 FL ; HSS ; Uncoated ; D9 ; Series 141
| Thread Diameter Size (TDZ) | M36 | Tool Type | Hand Tap |
| Thread Pitch (TP) | 4 mm | Chamfer | 5P |
| Thread Standard | Metric | Coating | Uncoated |
| Overall Length (OAL) | 6-1/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3″ | End Shape | Chamfer |
| Usable Length (LU) | 80 mm | Style | Taper |
| Connection Diameter Machine Side (DCONMS) | 31.31 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 141 |
| Cutting Edge Material | HSS | Thread Size | M36 × 4 |
| Thread Tolerance Class (TCTR) | D9 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
6.30000
Package Width
2.05000
Package Height
1.95000
Package Weight
1.6550
