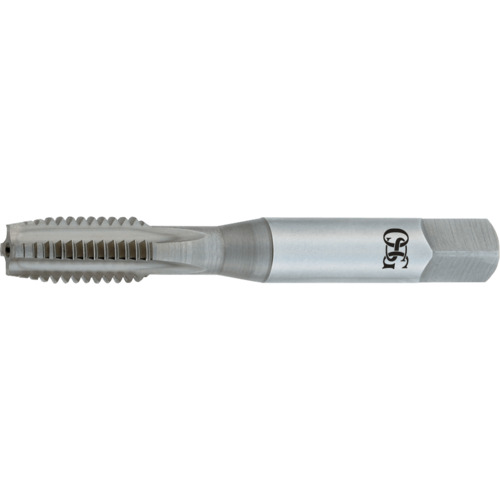

M5X0.8 D5 3FL BOTT NI ST
Straight Flute Tap; M5 × 0.8 mm ; 2-3/8″ OAL ; 3 FL ; HSSCo ; Nitride ; D5 ; Series 241
| Thread Diameter Size (TDZ) | M5 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 0.8 mm | Chamfer | 1.5P-2P |
| Thread Standard | Metric | Coating | Nitride |
| Overall Length (OAL) | 2-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ | End Shape | Chamfer |
| Usable Length (LU) | 24 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 4.92 mm | Shank Type | Round |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 241 |
| Cutting Edge Material | HSSCo | Thread Size | M5 × 0.8 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.00000
Package Width
.40000
Package Height
.35000
Package Weight
0.025
