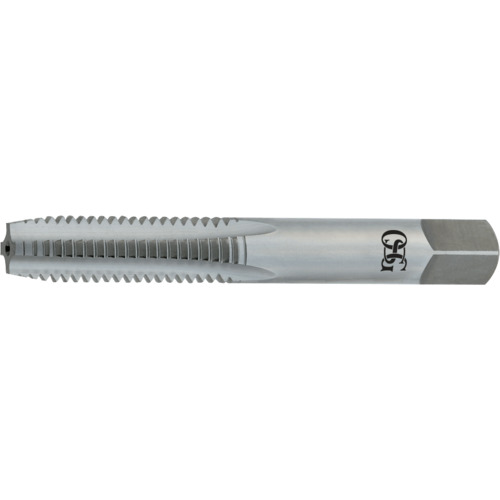

5/16-18 4FL H3 HSS-CO Straight Fl Tap - Bright
Straight Flute Tap; 5/16″ - 18 ; 2-23/32″ OAL ; 4 FL ; HSSCo ; Uncoated ; H3 ; Series 305
| Thread Diameter Size (TDZ) | 5/16″ | Cutting Edge Material | HSSCo |
| Threads per Inch (TPI) | 18 | Thread Tolerance Class (TCTR) | H3 |
| Thread Standard | NC | Chamfer | 4P-4.5P |
| Overall Length (OAL) | 2-23/32″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 1-1/8″ | Flute Type | Straight |
| Usable Length (LU) | 1-1/8″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.317″ | Series/List # | 305 |
| Flute Count (NOF) | 4 | Thread Size | 5/16″ - 18 |
| Applicable Material | | Steel | Hard Materials | |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.60000
Package Width
.45000
Package Height
.45000
Package Weight
0.05
