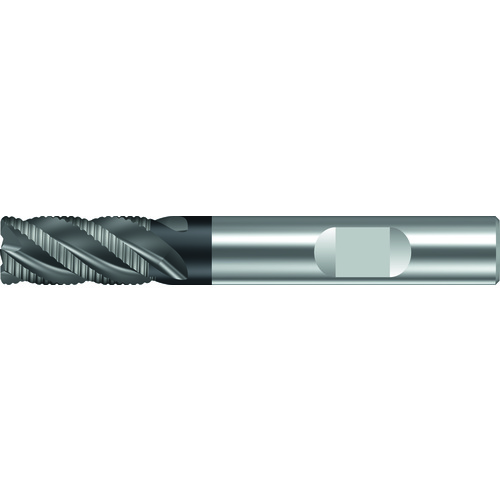

8mm Dia. × 19mm OAL 4 Flute Carbide TAX 40° Helix
SQ End Mill; 8 mm Dia. × 19 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 1 mm RE ; 4 FL ; 19 mm LBS ; Carbide ; AlTiN
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 8 mm | Flute Helix Angle (FHA) | CW|40 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Shank Type | Weldon |
| Depth of Cut Maximum (APMX) | 19 mm | End Shape | Corner Radius |
| Overall Length (OAL) | 63 mm | Usable Length (LU) | 19 mm |
| Cutting Edge Material | Carbide | Corner Radius (RE) | 1 mm |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.315″ |
Product Features
| Family Description | H3183378–8–1 | Country of Origin | Germany |
Shipping Info
Package Weight
0.103
