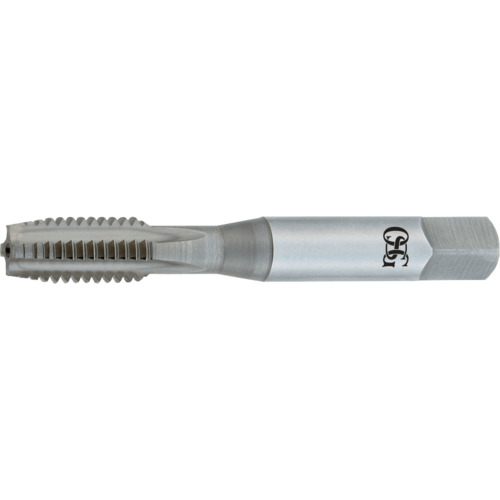

2-56 Dia. - H2-3 FL - HSSE - Bright - Plug - Straight Flute Tap
Straight Flute Tap; #2 - 56 ; 1-3/4″ OAL ; 3 FL ; HSSCo ; Uncoated ; H2 ; Series 240
| Thread Diameter Size (TDZ) | #2 | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 56 | Chamfer | 4P-4.5P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 1-3/4″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/16″ | End Shape | Chamfer |
| Usable Length (LU) | 0.47″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Shank Type | Round |
| Flute Count (NOF) | 3 | Measurement Type | Wire Gauge |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 240 |
| Cutting Edge Material | HSSCo | Thread Size | #2 - 56 |
| Thread Tolerance Class (TCTR) | H2 |
Product Features
| Country of Origin | Japan |
Shipping Info
Package Length
2.40000
Package Width
.40000
Package Height
.35000
Package Weight
0.005
