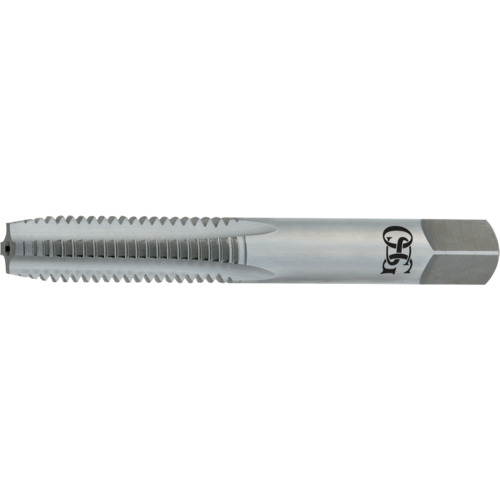

7/8-9 4Fl H4 HSS Left Hand Straight Flute Plug Tap-Bright
Straight Flute Tap; 7/8″ - 9 ; 4-11/16″ OAL ; 4 FL ; HSS ; Uncoated ; H4 ; Series 101L
| Thread Diameter Size (TDZ) | 7/8″ | Tool Type | Hand Tap |
| Threads per Inch (TPI) | 9 | Chamfer | 4P-4.5P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 4-11/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 2-7/32″ | End Shape | Chamfer |
| Usable Length (LU) | 2-1/2″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.697″ | Shank Type | Round |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Left Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 101L |
| Thread Tolerance Class (TCTR) | H4 | Thread Size | 7/8″ - 9 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
4.85000
Package Width
1.20000
Package Height
1.15000
Package Weight
0.44
