M10X1.25 D5 4FL BOTT NI

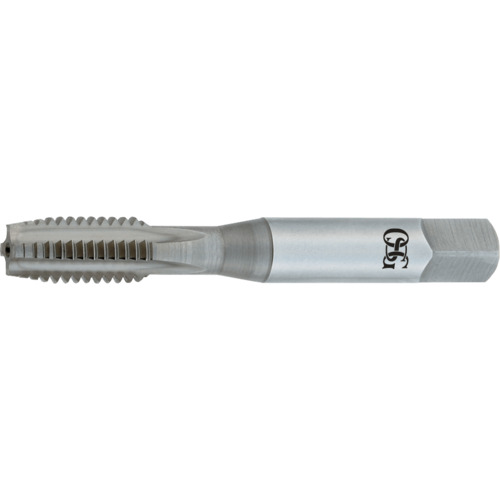

Straight Flute Tap; M10 × 1.25 mm ; 2-15/16″ OAL ; 4 FL ; HSSCo ; Nitride ; D5 ; Series 241
| Thread Diameter Size (TDZ) | M10 | Thread Tolerance Class (TCTR) | D5 |
| Thread Pitch (TP) | 1.25 mm | Chamfer | 1.5P-2P |
| Thread Standard | Metric | Coating | Nitride |
| Overall Length (OAL) | 2-15/16″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 1-1/4″ | End Shape | Chamfer |
| Usable Length (LU) | 32 mm | Style | Bottoming |
| Connection Diameter Machine Side (DCONMS) | 9.67 mm | Shank Type | Round |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 241 |
| Cutting Edge Material | HSSCo | Thread Size | M10 × 1.25 |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
3.65000
Package Width
.60000
Package Height
.55000
Package Weight
0.08
