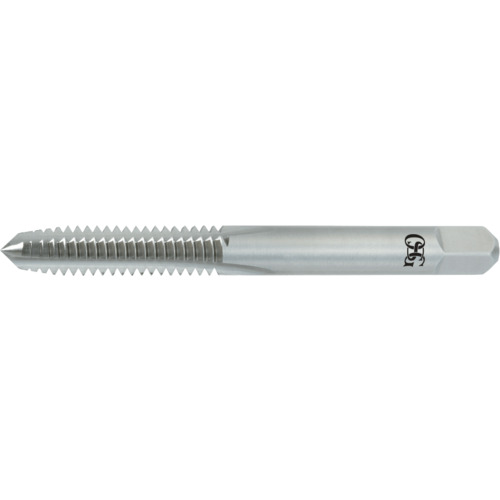

2-56 Dia-H2-2 FL-Bright HSS-Plug Hand Tap
Straight Flute Tap; #2 - 56 ; 1-3/4″ OAL ; 2 FL ; HSS ; Uncoated ; H2 ; Series 104
| Thread Diameter Size (TDZ) | #2 | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 56 | Chamfer | 4P-4.5P |
| Thread Standard | NC | Coating | Uncoated |
| Overall Length (OAL) | 1-3/4″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/16″ | End Shape | Chamfer |
| Usable Length (LU) | 0.511″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 0.14″ | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 2 | Measurement Type | Wire Gauge |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Series/List # | 104 |
| Cutting Edge Material | HSS | Thread Size | #2 - 56 |
| Thread Tolerance Class (TCTR) | H2 |
Product Features
| Remarks | •General Purpose Hand Taps •Machine Screw Sizes Straight Flute Ground Thread High Speed Steel •Plug | Country of Origin | Japan |
Shipping Info
Package Length
2.40000
Package Width
.45000
Package Height
.40000
Package Weight
0.005
