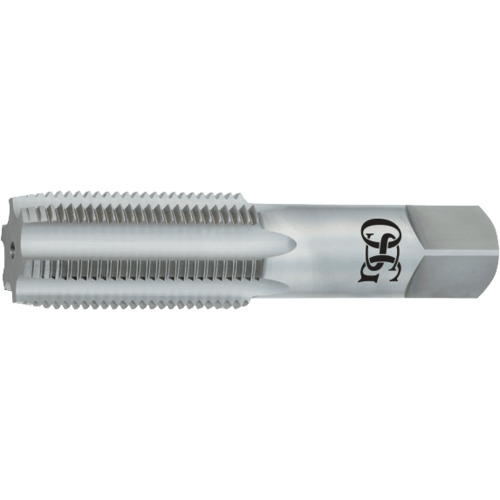

2-8 H6 6FL HSS PLUG ST
Straight Flute Tap; 2″ - 8 ; 7-5/8″ OAL ; 6 FL ; HSS ; Uncoated ; H6 ; Series 180
| Thread Diameter Size (TDZ) | 2″ | Chamfer | 4P-4.5P |
| Threads per Inch (TPI) | 8 | Coating | Uncoated |
| Overall Length (OAL) | 7-5/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 3-9/16″ | End Shape | Chamfer |
| Usable Length (LU) | 3.811″ | Style | Plug |
| Connection Diameter Machine Side (DCONMS) | 1.644″ | Shank Type | Round |
| Flute Count (NOF) | 6 | Cutting Direction (HAND) | Right Hand |
| Applicable Material | | Steel | Cast Iron | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 180 |
| Thread Tolerance Class (TCTR) | H6 | Thread Size | 2″ - 8 |
| Tool Type | Hand Tap |
Product Features
| Country of Origin | Mexico |
Shipping Info
Package Length
8.05000
Package Width
2.60000
Package Height
2.50000
Package Weight
4.145
